Automatic Solar Channel Roll Forming Machine

Automatic Solar Channel Roll Forming Machine
Automatic Solar Channel Roll Forming Machine
Automatic Solar Channel Roll Forming Machine
Automatic Solar Channel Roll Forming Machine
Automatic Solar Channel Roll Forming Machine

Description

Reviews

Brief introduction

Automatic Solar Channel Roll Forming Machine is for producing the solar channels. It can uncoil, level, servo feeding, punch and continuously roll forming with automatic cutting to length. It is the essential equipment in the steel structure industry.

The machine can be customized based on the customer’s specific technical requirements.

Technical specification
No. Item Parameter Remark
1   Suitable material Type Galvanized steel sheet Can be customized
Thickness 1.5-2.5mm
Yield strength 350-450MPa
2 Producing Speed (m/min) 8-12
3 Main machine motor power (KW) 18.5 According to final
design
4 Hydraulic station motor power (KW) 5.5 According to final
design

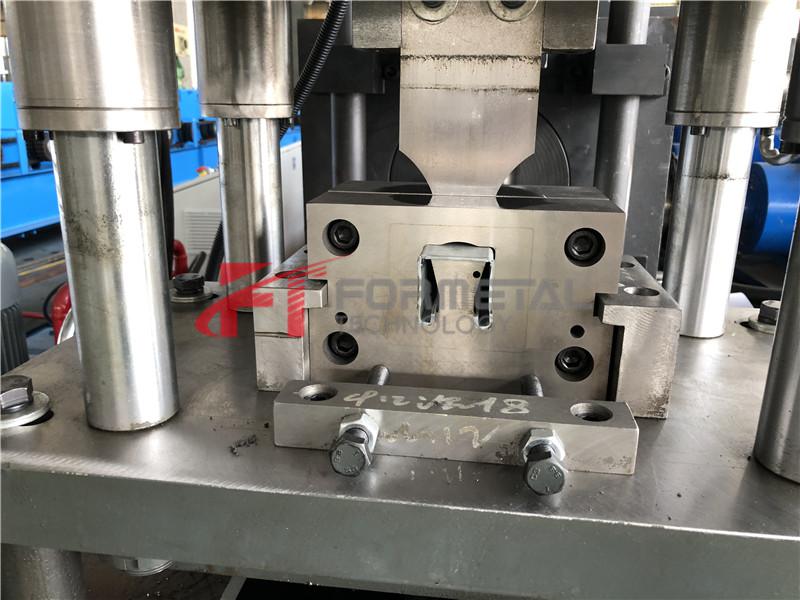

5 Cutting way Hydraulic cutting or
saw cutting

6 Roller material Cr12 with quenching
treatment
Can be customized
7 Control system  PLC control system,
 Operation:
screen+ button

Video
Description

Automatic Solar Channel Roll Forming Machine can produce the profile with following different size, with servo feeding device and punching bed.. Special sizes of the profile can be designed in our company.

Profile drawing (the profile can be especially designed according to customer)

Work flow

Uncoiling Leveling Servo feeding Punching Roll forming Straightening device Post cutting Run out table

Layout drawing of Automatic Solar Channel Roll Forming Machine


Stable Servo Feeder and High Efficiency Punching device

1.  The step of sheet feeding is changeable to meet the punching requirements.

2.  It consists of one pair of punch rollers which is controlled by servo motor.

3.   Feeding roller material: GCr15, hardness HRC55-60. Punching die material: DC53 (HRC 60-62)

4.   It has high feeding precision and work smoothly.


High Precision Roll Forming Unit

1.   Stable Machine Working with Gear Box Transmission

2.   The roll former consists of frame base and forming frame.

3.   The frame base adopts welding structure with good rigidity.

4.   The roller adopts Cr12 with quenching treatment.

Application


Product application of Automatic Solar Channel Roll Forming Machine.

The product from the Automatic Solar Channel Roll Forming Machine is widely used as the fast development of solar energy industry.

In order to satisfy various customer requirements, we design and manufacture Automatic Solar Channel Roll Forming Machine in different specifications, models and configurations.

Packaging

Packaging Details

1. Two *40GP and one *20GP containers for loading one set of the product line.

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3. Spare parts and some small parts packed in wooden box;

4. All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
